25mm mini stepper gear motor 24VDC Geared Stepper Motor
diameter 25mm pm Geared Stepper Motor 5V Micro stepping gear motor
Description:
The SM25-048S-118G is a 2-phase 4-wire permanent magnet motor ,the step angle of this single motor is 7.5 degrees, and it takes 48 steps to make one revolution (without gearbox)
In addition, we have different gear ratios for you to choose, the gear reduction ratio is 1:10 1:15 1:20 1:30 1:60 1:75 1:100 standard, which can be determined according to your needs, the gear of the motor The ratio is 30:1.
So the step angle is 7.5 degrees/30
If you are not sure about the speed ratio you need, you can give me the information about the motor you need, such as the voltage, speed and torque of the motor, and I can recommend it to you based on your needs
NOTED:
The output shaft of the motor can be customized according to customer installation requirements.
application:
Valve application
Household Appliances Air Conditioning
refrigerator smart bathroom
Automatic Door Lock CCTV Monitor
Electronic equipment
Motor Parameters:
| Motor type | Permanent magnet motor with gearbox |
| Motor diameter | 25mm |
| Voltage | 24V CD |
| Step Angle | 7.5°/10 |
| No.of Phase | 2 phase |
| Coil resistance | 10Ω±10%(25℃) |
| Holding torque | 2000 g*cm |
| Max pull-in rate | 800pps |
| pull-in torque at 200pps | 600g.cm |
| Current per phase | 300mA |

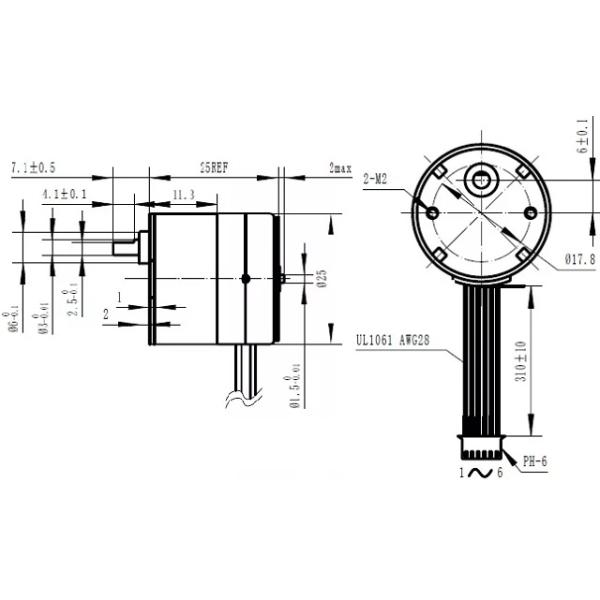

Design drawing:
Product display:
Micro Geared Stepper Motor 2-phase 4-wirer Bipolar stepping motor
Application of stepper motors:
SM25-048S-30G stepper motor is used for precision control and is widely used in medical equipment, 3D printers, industrial precision control, automation equipment, valve applications, etc.
Stepper motors can be used in any mechanism that requires precise control and rotational/linear motion.
If this motor does not meet your installation needs, we also recommend other diameter motors for you, if you have any questions, you can feel free to contact me
These specification applies to the Permanent Magnet STEPPING MOTOR, Model name is SM25-048S-8118G.This motor stepper is a dia 25pm type stepper motor stepper, fixing a gear box.so that the torque can higher
for mounting we have two type standard.
